U5

Avalon

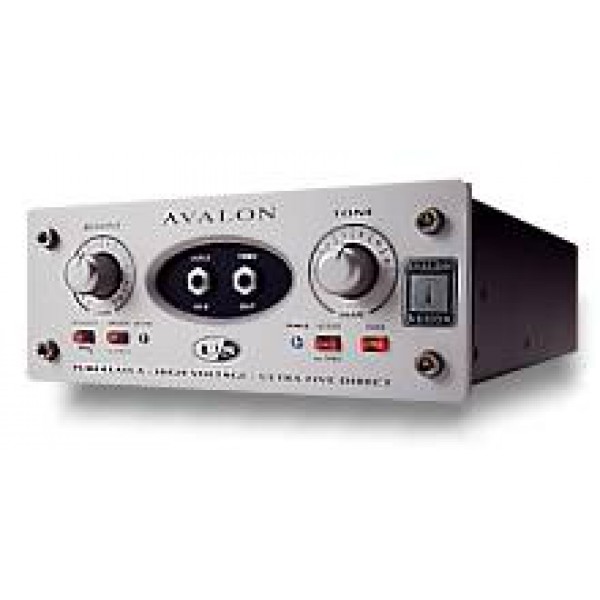

Modèle :Avalon U5
Disponibilité : 1
Lu : 2224 fois
Prix : 25,00 € H.T. / jour
30  € T.T.C.
  • Smooth musical detail and sonic excellence
  • Variable gain preamp to +30dB.
  • Dual microphone and line outputs
  • Hi-Z   3,000,000 ohm input impedance
  • Very low noise -100dB
  • High headroom +30dB
  • Six tone bank selections.
  • DC coupled Class A output for superior bass
  • High cut switch eliminates noise
  • LED active signal indicator
  • Headphone monitor output jack
  • Low distortion less than 0.5% THD and IMD
  • High level 400 watt speaker input
  • Active to thru selector - ground isolation switch
  • 100% discrete power supplies for audio path
  • Internal toroidal power supply for low noise
  • Long lasting, stainless steel hardware
Circuit Topology:100% discrete, high-voltage Class A
Gain:Switched 3dB steps, maximum gain +30dB
Input Impedance:3 ,000,000 ohm unbalanced (single ended)
Maximum Input Level+24dBu unbalanced, 400w speaker input
Output Connectors (2):XLR type, pin 2 hot electronic balanced
Maximum Output Level (Class A):+30dBu DC coupled, balanced 600 ohms (mic and line out)
Headphone Output:0.5w into 600 ohms
Noise 20kHz Unweighted:-100dBu minimum gain position
Distortion THD, IMD:0.1% at +10dB
Frequency Response, -/+0.5dB:5Hz to 100kHz
Frequency Response, -3dB:1Hz to 500kHz (input band limited)
High Cut Filter:-3dB at 8kHz minimum phase design
Tone Selector:Six position rotary switch, all passive filters
AC Power:Internal toroidal AC supply
Dimensions:8.5 x 3.5 x 12 in (216 x 88 x 305mm)
Weight-Packed:12lbs (5.4kg)
